КО. оборудования автоматизации Ханчжоу Цианронг, Лтд.
сфокусируйте на ультразвуковом применении, добросовестно выиграть клиентов
| Место происхождения: | Китай |
|---|---|
| Фирменное наименование: | QRsonic |
| Сертификация: | CE |
| Номер модели: | QR-C30Y |
| Количество мин заказа: | 1 блок |
| Цена: | Negotation |
| Упаковывая детали: | упакованный в коробке коробки |
| Время доставки: | 3 трудодня |
| Условия оплаты: | T/T, западное соединение |
| Поставка способности: | 2000 ПК в месяц |
| Имя продуктов: | Ультразвуковой резец | частота: | 30kHZ |
|---|---|---|---|
| максимальная сила: | 300В | Водитель: | Генератор цифров |
| Напряжение тока: | 220В или 110В | Вес лезвия: | 1.25КГС |
| Вес брутто: | 6.5КГС | применение: | Автомобильная промышленность |
| Выделить: | 300W Ultrasonic Cutting Machine,Ultrasonic Cutting Machine 30khz,automotive industry ultrasonic cutting machine |
||

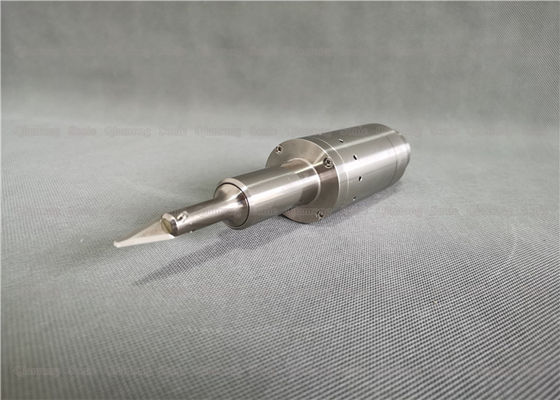

A Robotic Carpet Cutting Cell with 30Khz Ultrasonic Cutter for the Automotive Industry
Description:
Ultrasonic cutting technology uses the energy of sound waves to cut. It does not require sharp cutting edges, and does not require a lot of pressure, and will not cause chipping or damage to the material being cut. The ultrasonic rubber cutter can easily cut resin, rubber, non-woven fabric, film, various overlapping composite materials and food.
Specifications:
| Item No | QR-C30Y |
| Power | 300W |
| Generator | Digital generator |
| Frequency | 30KHZ |
| Voltage | 220V or 110V |
| Weight of Blade | 1.25kgs |
| Gross weight | 6.5Kg |
| Application | Automotive Industry |
Traditional cutting problems:
Traditional cutting uses a knife with a sharp edge to concentrate a very large pressure on the edge and press the material to be cut. When the pressure exceeds the shear strength of the material to be cut, the molecular bonds of the material are pulled apart to achieve cutting. Because the material is pulled apart by strong pressure and rigidity, the cutting edge of the cutting tool must be very sharp, and the material itself has to withstand relatively large pressure. Therefore, the cutting effect is not good for soft and elastic materials, and it is more difficult for sticky materials.
Advantages of ultrasonic cutting:
High cutting precision, no deformation of rubber
Good cut surface finish and good bonding performance
Easy to apply to automated production
Fast speed, high efficiency, no pollution
A Robotic Carpet Cutting Cell with 30Khz Ultrasonic Cutter for the Automotive Industry
